Digital Battery Tester - Professional Li-ion Battery Load & Capacity Analyzer with LCD Display | Portable Battery Charge Checker for Mobile Power Banks, Phones, Laptops | Perfect for Home, Workshop & Travel Use

$46.19

$83.99

Safe 45%

Digital Battery Tester - Professional Li-ion Battery Load & Capacity Analyzer with LCD Display | Portable Battery Charge Checker for Mobile Power Banks, Phones, Laptops | Perfect for Home, Workshop & Travel Use

$46.19

$83.99

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

26 people viewing this product right now!

SKU: 83796894

Guranteed safe checkout

Description

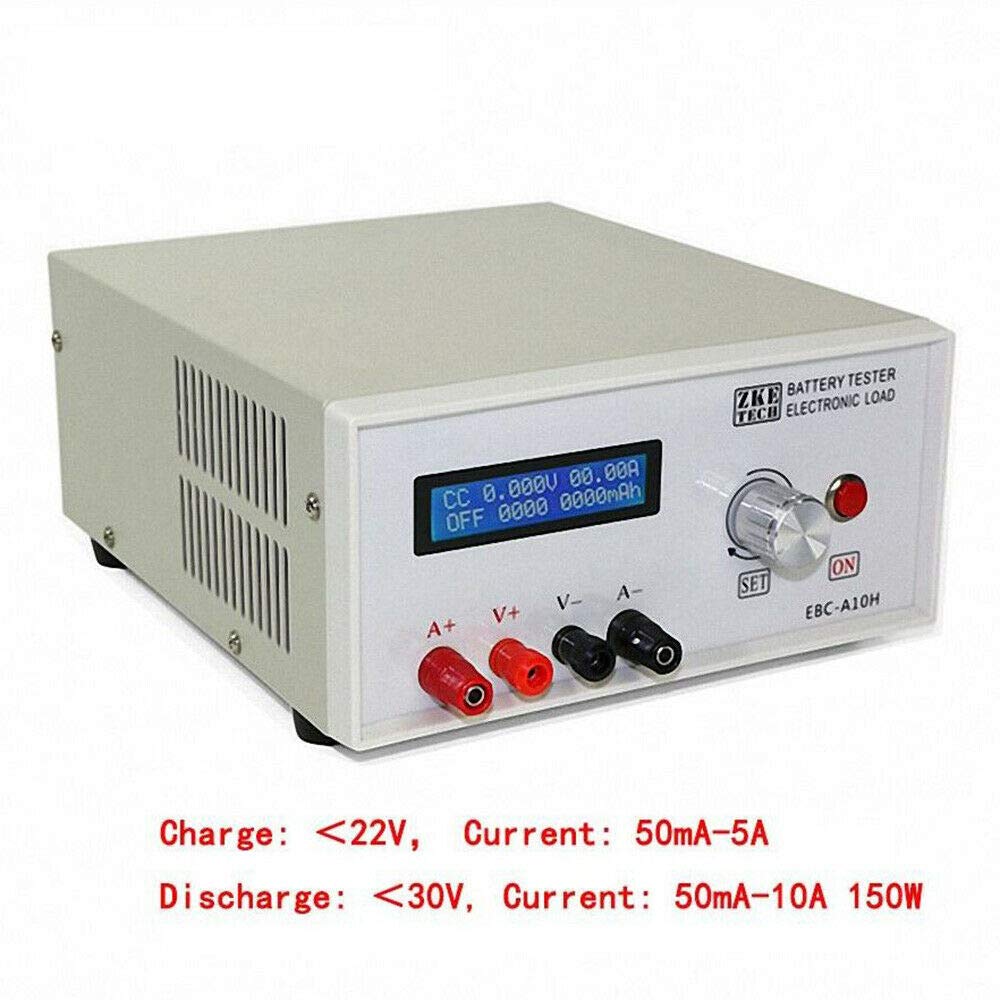

Specifications:Power: AC110VVoltage setting: Discharge: 0-30V, minimum step size 0.01VCharging: 0-22V, minimum step size 0.01VCurrent setting: Discharge: 0.05-10A, minimum step size 0.01A (automatic current limit when power exceeds limit)Charging: 0.05-5A, minimum step size 0.01A (maximum current limited by supply current)Discharge mode: DSC-CC: constant discharge current for testing battery capacity or supply currentDSC-CP: Constant discharge power for simulating constant power equipment or testing power supplyCharging method: standard charging (Support nickel hydrogen, nickel chromium, lithium, iron lithium, lead acid)CHG-CV: Custom constant current constant voltage charging, only for batteriesAutomatic charge and discharge: support automatic charging - discharge - charging mode for testing battery capacityVoltage test:0.002V-4.5V (low voltage), accuracy is 0.003V, error ± 0.5%4.5V-30V (high voltage), accuracy to 0.01V, error ± 0.5%Current test: 0.05-10A, accuracy 0.005A, error ±0.5%Capacity test: 10Ah, resolution is 0.001Ah10AH-100Ah, resolution is 0.01AhAbove 100Ah, resolution 0.1AhConnection method: four-wire detection, separate wiring of voltage and current channels to ensure measurement accuracyLCD display: voltage, current, capacity, time, power, energy test dataComputer online: dedicated USB to TTL serial port (Mini USB interface, non-ordinary USB cable) computer control, curve drawing, calibration benchmark test, firmware upgrade, cycle charge and discharge.Tip: A + V + is connected to the positive battery, A_V_ is connected to the negative batteryPackage size: 14'' x 11.5'' x 6''Shipping weight: 5 lbsNote:Built-in 24V power module

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

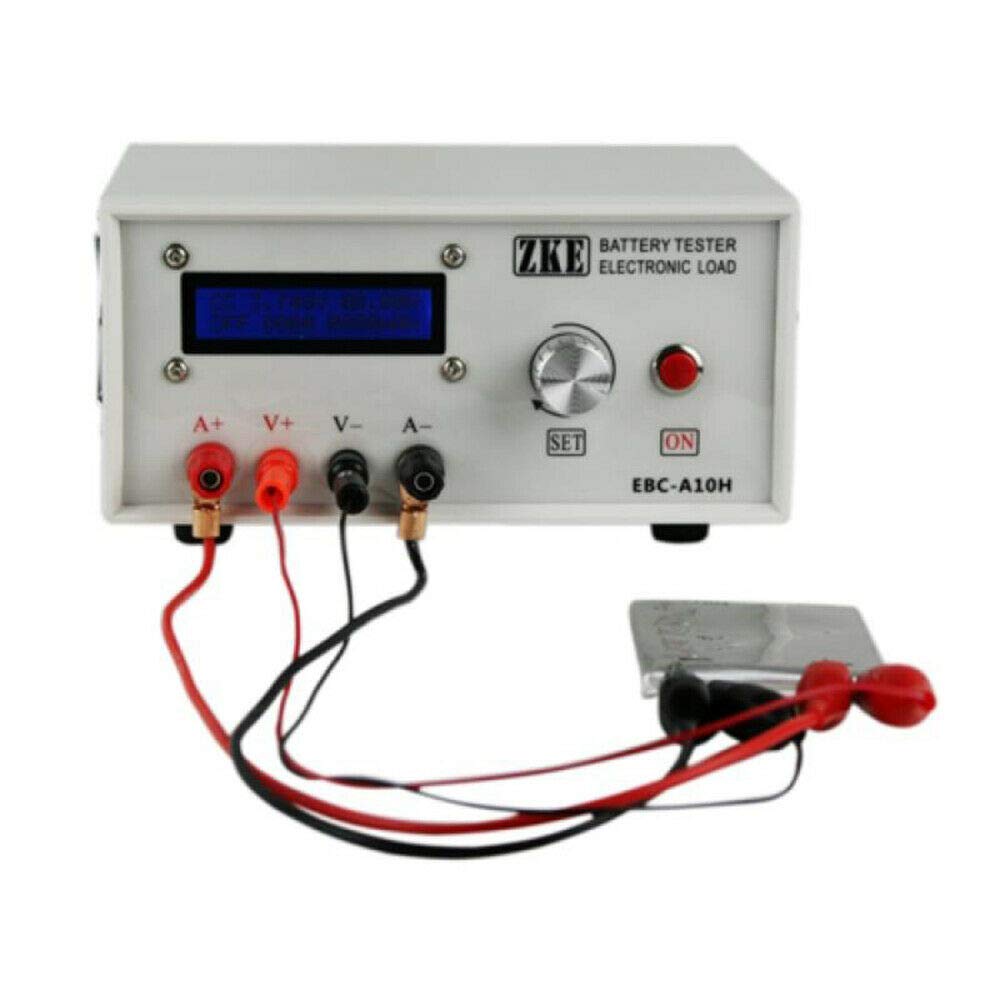

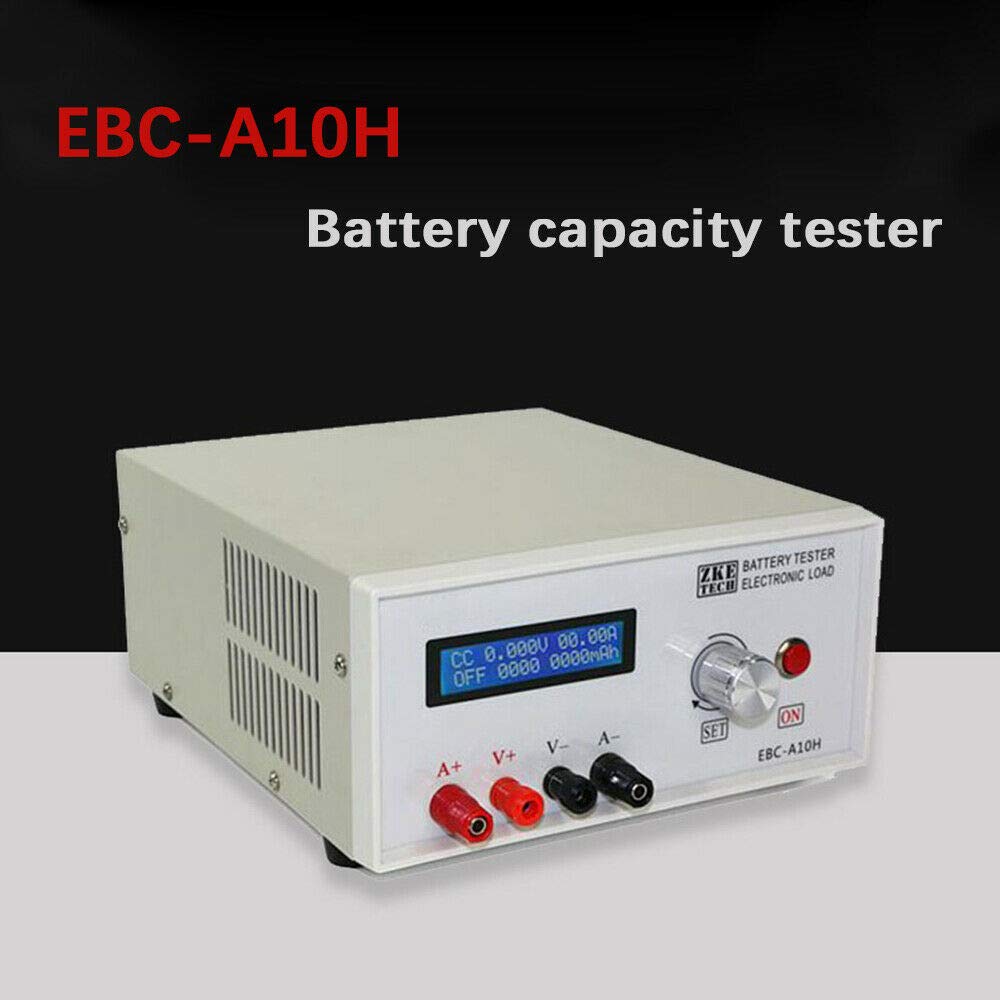

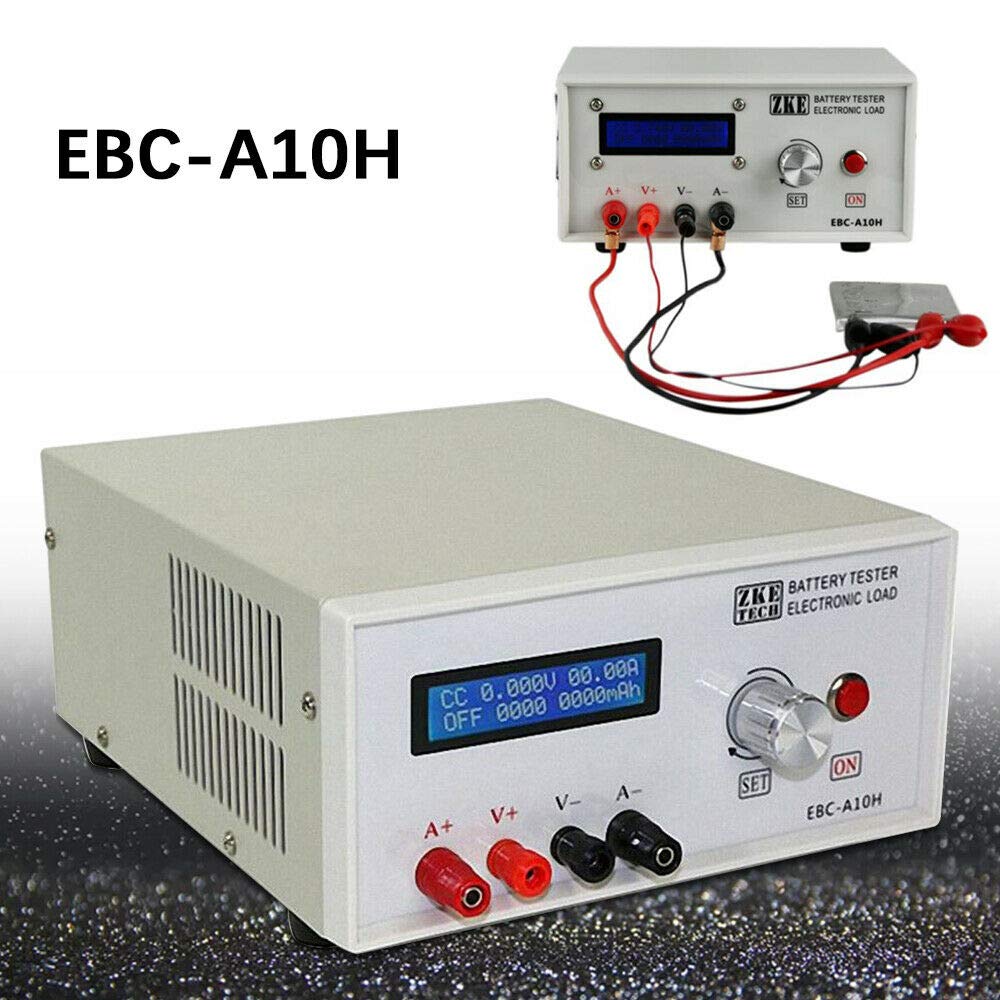

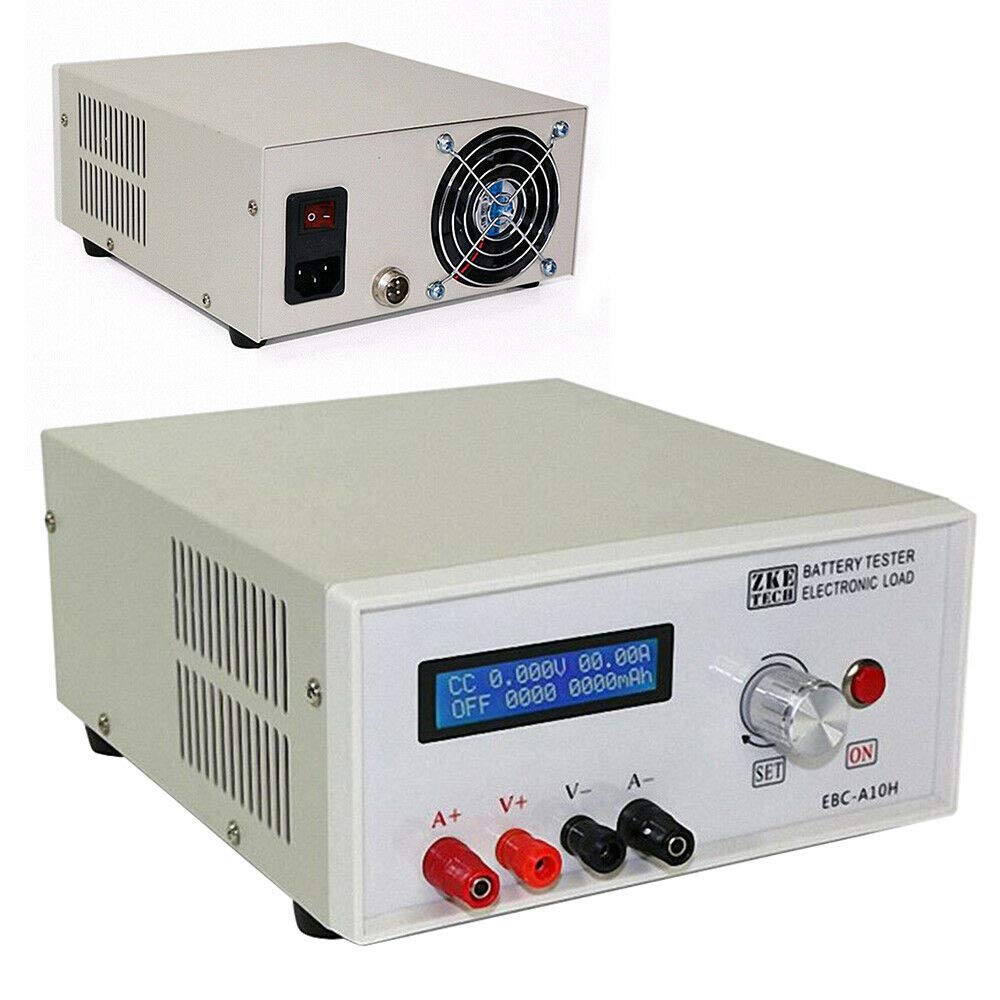

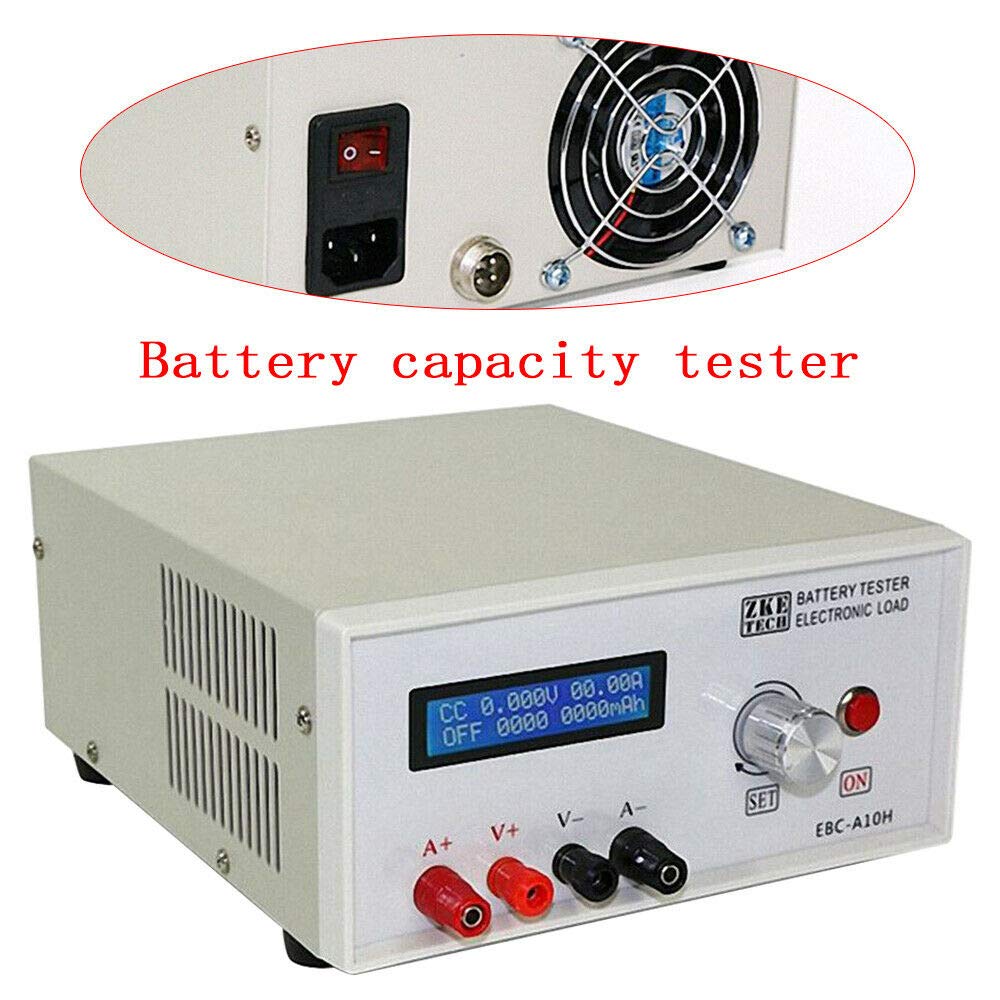

【BATTERY CAPACITY TESTER】EBC-A10H is an electronic load with charging function. It is suitable for charging and discharging capacitance test of various batteries, mobile power discharge test, charging head power performance test, support for connecting to computers, and more extended functions through online software.

【AUTOMATIC CHARGING & DISCHERGE】Charging method is standard charging, support nickel hydrogen, nickel chromium, lithium, iron lithium, lead acid. Support automatic charging - discharge - charging mode for testing battery capacity. LCD display voltage, current, capacity, time, power, energy test data.

【VOLTAGE & CURRENT & CAPACITY TEST】Voltage test 0.002V-4.5V (low voltage), accuracy is 0.003V, error ± 0.5%; 4.5V-30V (high voltage), accuracy to 0.01V, error ± 0.5%. Current test 0.05-10.000A, accuracy 0.005A, error ±0.5%. Capacity test 10Ah, resolution is 0.001Ah; 10AH-100Ah, resolution is 0.01Ah; Above 100Ah, resolution 0.1Ah. (Connection method four-wire detection, separate wiring of voltage and current channels to ensure measurement accuracy.)

【COMPUTER ONLINE】dedicated USB to TTL serial port (Mini USB interface, non-ordinary USB cable) computer control, curve drawing, calibration benchmark test, firmware upgrade, cycle charge and discharge. (Tip A + V + is connected to the positive battery, A_V_ is connected to the negative battery)

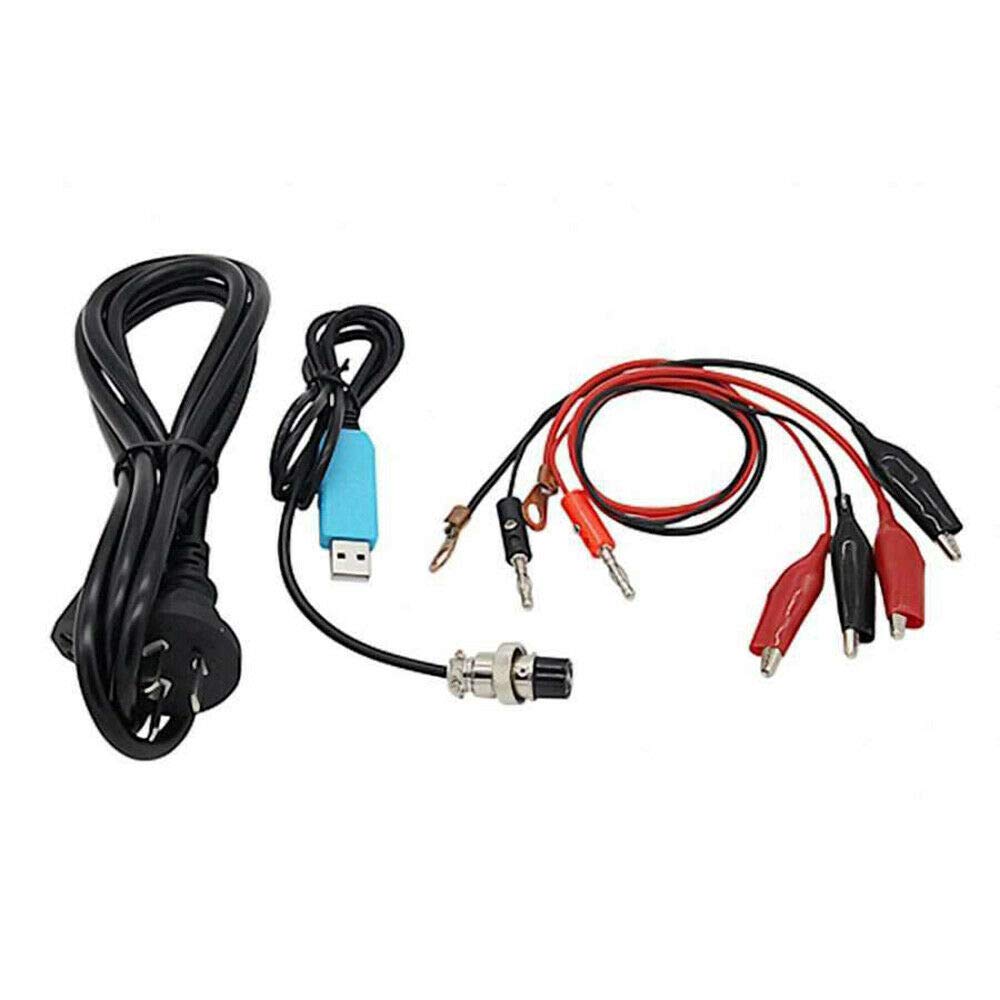

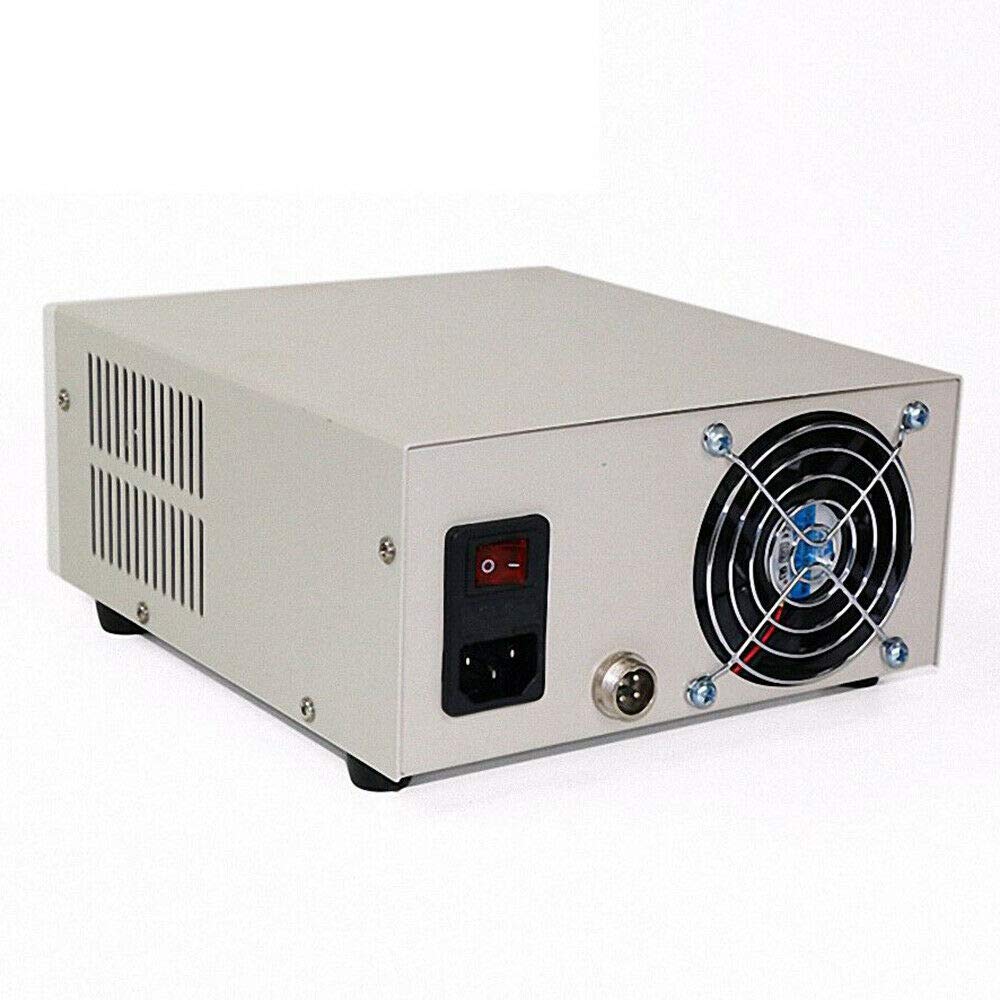

【PACKAGE CONTENTS】1 x Tester, 1 x On-Line Line, 2 x 1 Pairs Test Clip, 1 x Power Cord. (Note Built-in 24V power module.)

Reviews

*****

Verified Buyer

I used this battery tester to test a couple of LiFePo4 batteries for an upcoming project and it did the job very well. I have to admit, I used it with the PC-Software and did not try to start a test serie only via the device, because this was a bit misleading.Controlled via the downloadable PC software and a Windows 10 Laptop it did a decent job by charging and discharging batteries with a constant 2A load or charge current. Even if a test serie could take quite some time (more than 16-20hrs in my case) it never failed.
